We provide various kinds of accessories for thermocouples and resistance temperature detectors.
■Compensating Cable/Duplex Wire
■Thermowell
■Compression Fitting (CF)
■Thermocouple Connector (D Type)
Compensating Cable/Duplex Wire
補償導線?デュープレックスワイ? width=

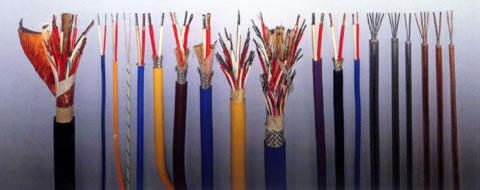

[ Compensating Cable for Thermocouple ]
*Please select core and covering suitable for the application in consideration of operating temperature and ambient conditions.
Appearance Code Color
Coding
Ele-ment Pair Dimensions
No./Core O.D
Dimensions
Nom.finish
(mm)
Covering Appli-cation
KX13
*KX13
RX13
KX13
WX13
EX13
JX13
TX13
Black
Blue
Blue
Purple
Yellow
Brown
R
K
K
E
J
T
single
7/0.3mm
4.6 x 2.8
Inner: Glass braided insulating sheath
Outer: Stainless steel shield
Heat-resistance
(up to 180?
KX13D *KX13D
KX13D
WX13D
JX13D
Blue
Blue
Yellow
K
K
J
double
7/0.3mm
φ5.3
Inner: Glass braided
Outer: Stainless steel shield
Heat-resistance
(up to 180?
KX14 *KX14
RX14
NX14
KX14
WX14
EX14
JX14
TX14
Black
Pink
Blue
Blue
Purple
Yellow
Brown
R
N
K
K
E
J
T
single
7/0.3mm
4.3 ?2.3
Glass braided insulating sheath Heat-resistance
(up to 180?
WX14D *WX14D
WX14D
EX14D
JX14D
TX14D
Blue
Purple
Yellow
Brown
K
E
J
T
double
7/0.3mm
φ4.5
Glass braided
insulati
Heat-resistance
(up to 180?
KX15 *KX15
BX15
RX15
NX15
KX15
VX15
EX15
JX15
TX15
Gray
Black
Pink
Blue
Blue
Purple
Yellow
Brown
B
R
N
K
K
E
J
T
single
7/0.3mm
4.1 x 2.4
PVC General
(up to 90?
KX15D *KX15D
KX15D
VX15D
EX15D
JX15D
TX15D
Blue
Blue
Purple
Yellow
Brown
K
K
E
J
T
double
7/0.3mm
φ5.0
PVC General
(up to 90?
KX15A *KX15A
RX15A
KX15A
VX15A
JX15A
TX15A
Black
Blue
Blue
Yellow
Brown
R
K
K
J
T
single
7/0.3mm
5.0 x 3.6
Inner: Copper shield
Outer: PVC
General
(up to 90?
VX15AD *VX15AD VX15AD
Blue
K
double
7/0.3mm
φ5.5
Inner: Copper shield
Outer: PVC
General
(up to 90?
ページトップに戻? name=
[ RTD Lead Wire ]
*Please select core and covering suitable for the application in consideration of operating temperature and ambient conditions.
Code Color
Coding
Pair Dimen - sions
No./Core O.D.
Dimen-sions
Nom.finish
(mm)
Covering Appli-cation
WR13 *WR13
WR13
Gray
3-wires, single
(Red,White,White)
20/0.18mm
φ5.0
Inner: Glass braided
insulating sheath
Outer: Stainless steel shield
Heat-resistance
(up to 180?
WR13D *WR13D
WR13D
Gray
3-wires, single
(Red,White,White)
20/0.18mm
φ6.6
Inner: Glass braided
insulating sheath
Outer: Stainless steel shield
Heat-resistance
(up to 180?
[ Duplex Wire ]
Code Conductor Material Color
Coding
Dimensions
Core (mm)
Dimensions
Nom.finish(mm)
Covering
+ leg - leg
DK301 *DK301
DK301
DJ301
DT301
Chromel
Iron
Copper
Alumel
Constantan
Constantan
Blue
Yellow
Brown
0.32
Single core
2.1 x 3.2
PVC
DK651 *DK651
DK651
Chromel
Alumel
Blue
0.65
Single core
2.6 x 4.0
PVC
DK30TT *DK30TT
DK30TT
DJ30TT
DT30TT
Chromel
Iron
Copper
Alumel
Constantan
Constantan
Blue
Yellow
Brown
0.32
Single core
1.0 x 1.6
Teflon
DK65TT *DK65TT
DK65TT
DJ65TT
DT65TT
Chromel
Iron
Copper
Alumel
Constantan
Constantan
Blue
Yellow
Brown
0.65
Single core
1.5 x 2.5
Teflon
ページトップに戻? name=
Thermo well
Thermowell (Drilled Bar Stock Type Protection Tube) is usually being used to ensure longer service life under critical conditions such as very corrosive gasses or liquids, high temperature, high pressure, vibration, shock or high flow velocity. At Yamari, various Thermowells durable under these conditions are manufactured. Please contact us for configuration, material, dimension, etc. including pressure test.

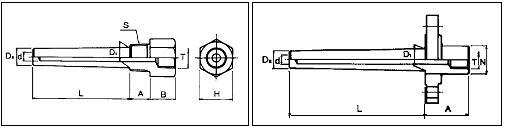

Screwed-in Type & Flanged Type
Screwed-in Type Flanged Type
ページトップに戻? name=
Compression Fitting (CF)

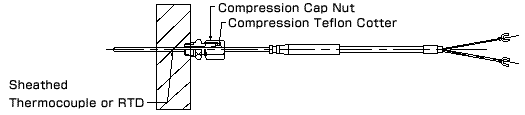

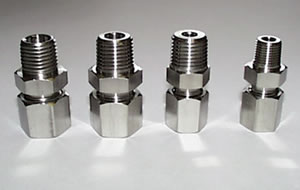

COMPRESSION FITTING Use the compression fitting to fix sheathed thermocouple or RTD. The compression fitting consists of three parts, a compression cap nut, a compression Teflon cotter, and a compression seat. As a Teflon cotter is compressed by a compression cap nut,, it squishes down the sheath. Please consult us for pressure above 5kg/cm.
COMPRESSION FITTING
Configuration Nominal Sheath
O.D. (mm)
Code S1 S2 A B
形 ?
1.0
CF101
R1/8
-
10
33
1.6
CF161
R1/8
-
10
33
CF162
R1/4
-
12
35
2.2
CF231
R1/8
-
10
33
CF232
R1/4
-
12
35
3.2
CF321
R1/8
-
10
33
CF322
R1/4
-
12
35
4.8
CF481
R1/8
-
10
33
CF482
R1/4
-
12
35
6.4
CF642
R1/4
-
12
35
8.0
CF802
R1/4
-
12
35
形 ?
3.2
CF324
R1/2
R1/8
20
59
CF326
R3/4
R1/8
20
59
4.8
CF484
R1/2
R1/8
20
59
CF486
R3/4
R1/8
20
59
6.4
CF644
R1/2
R1/4
20
59
CF646
R3/4
R1/4
20
59
8.0
CF804
R1/2
R1/4
20
59
CF806
R3/4
R1/4
20
59
ページトップに戻? name=
Thermocouple Connector
[Standard Connector (Model: DL)]
Solid pin plug and socket are made of extension and compensating grade alloys which are housed in color-coded heat-resistance plastic shells. Select connector in accordance with the type of thermocouple to be used.
コネクタ・大
コネクタ・大
Code Type of Thermocouple Used Shell Color
DL-K
K
Blue
DL-J
J
Yellow
DL-T
T
Brown
DL-E
E
Purple
DL-R
R
Black
[Miniature Connector (Model: DS)]
Except smaller flat bar plug is used, construction is similar to that of standard connector. Recommended for small size THERMIC up to 3.2mm O.D.
コネクタ・小
コネクタ・小
Code Type of Thermocouple Used Shell Color
DS-K
K
Blue
DS-J
J
Yellow
DS-T
T
Brown
DS-E
E
Purple
DS-R
R
Black
